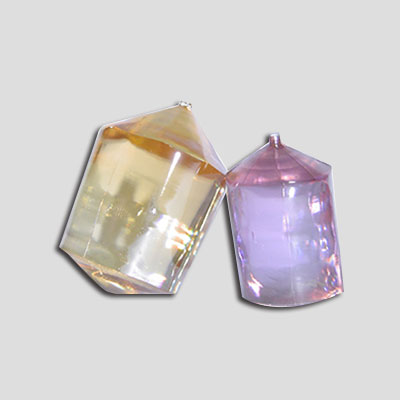

Nd:YVO4 Laser Crystal


  Applications For Single-longitudinal-mode output and compact design
    Diode laser-pumped Nd:YVO4 compact laser and its frequency-doubled green, red or blue laser will be the ideal laser tools of machining, material processing, spectroscopy, wafer inspection, light show, medical diagnostics, laser printing and other most widespread applications

  Features Better choice than Nd:YAG for low-power devices such as hand-held pointers, and others compact lasers
    As high as about five times larger absorption efficient over a wide pumping bandwidth around 808 nm  (therefore, the dependency on pumping wavelength is much lower and a strong tendency to the single    mode soutput)
    As large as three times larger stimulated emission cross-section at the lasing wavelength of 1064nm
    Lower lasing threshold and higher slope efficiency
    As a uniaxial crystal with a large birefringence, the emission is only a linearly polarized.


Main Specification Material Neodymium Doped Yttrium Orthovanadate
Nd dopant concentration
Dopant tolerance
0.1 - 5.0 atm%

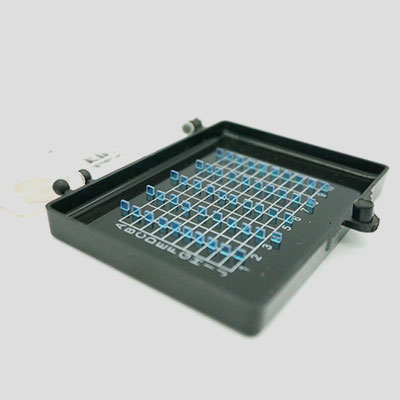

Diameter 3×3×3 mm3, 3×3×1 mm3, 3×3×0.5 mm3
Length 0.02 ~ 20mm
Dimensional Tolerance ±0.1mm
Coating AR @ 1064nm, R< 0.1% & HT @ 808nm, T>95%
HR @ 1064nm, R>99.8% & HT@ 808nm, T>9%
HR @ 1064nm, R>99.8%, HR @ 532 nm, R>99% & HT @ 808 nm, T>95%

Orientation a-cut crystalline direction (+/-5)
Orientation Tolerance ±0.5deg
Wavefront Distortion <λ/8 at 633nm
Surface quality  Scratch/Dig 10/5 Scratch and Dig
Parallelism < 10 arc sec
Perpendicularity < 5 arc min
Surface flatness <λ/10 at 632.8nm
End-faces Configuration Plano/Plano
Clear aperture > Central 90%
Chamfer 0.15×45o
Damage Threshold over 15J/cm2 (rods without coating)
over 700 MW/cm2 (coating)

Physical and Chemical Properties Crystal Structure Zircon Tetragonal, space group D4h-I4/amd
a=b=7.1193A,c=6.2892A

Dimensional tolerances +/-0.1mm(typical),
High precision +/-0.005mm can be available upon request

Melting Point 1810 ± 25
Atomic Density ~1.37×1020 atoms/cm2
Density/密度 4.22 g/cm3
Mohs Hardness Glass-like, 4.6 ~ 5
Refractive Index positive uniaxial, no=na=nb ne=nc
no=1.9573, ne=2.1652, @ 1064nm
no=1.9721, ne=2.1858, @ 808nm
no=2.0210, ne=2.2560, @ 532nm

Thermal Expansion Coefficient (300K)
αa=4.43×10-6/K
α
c=11.37×10-6/K

Thermal Conductivity //C:0.0523W/cm/K
C:0.0510W/cm/K

Optical properties Lasing Wavelength 914nm, 1064 nm, 1342 nm
Scattering Invisible, probed with a He-Ne laser
Stimulated Emission Cross Section 25.0×10-19 cm2 , @1064 nm
Fluorescent Lifetime 90 ms (about 50 ms for 2 atm% Nd doped) @ 808 nm
Absorption Coefficient 31.4 cm-1 @ 808 nm
Absorption Length 0.32 mm @ 808 nm
Polarized Laser Emission parallel to optic axis (c-axis)
Thermal Optical Coefficient dno/dT=8.5×10-6/K
dn
e/dT=2.9×10-6/K
300K

Intrinsic Loss <  0.1% cm-1 , @1064 nm
Gain Bandwidth 0.96 nm (257 GHz) @ 1064 nm
Diode Pumped Optical to Optical Efficiency > 60%
Sellmeier Equation (for pure YVO4 crystals) no2(λ) =3.77834+0.069736/(λ2 - 0.04724) - 0.0108133λ2
no2(λ) =4.59905+0.110534/(λ2 - 0.04813) - 0.0122676λ2

Crystal Class Positive uniaxial, no=na=nb, ne=nc,
n
o=1.9573, ne=2.1652, @1064nm
n
o=1.9721, ne=2.1858, @808nm
n
o=2.0210, ne=2.2560, @532nm
